~~ NV-XMONAD ~~
** MODAL XMONAD CONFIG **
As already announced in XMONAD, I’ve now expanded my XMonad configuration so that it works modally, just like Vim itself. I took a few minutes (or more like days) and rebuilt XMonad so that it has this functionality and also outputs the whole thing neatly to the XMobar.
MODALITY
In case no one has noticed, I’m a Vim user and have been for quite some time now. Anyone who works with Vim regularly quickly realizes that Vim keybindings become second nature, and you find yourself typing more and more often, for example, using Vim keybindings in other tools. Admit it, you’ve also tried closing gedit with :wq. Another thing you get used to is Vim’s modality. It’s a blessing and a curse, because I’d argue the biggest hurdle to getting started with Vim is the different modes. This brings us to modality. On the one hand, this provides different input modes, and on the other hand, the keys are mapped depending on the mode and have different functions.
Now, by default, XMonad is used in such a way that there is one layer (mode would probably be incorrect here, as it is the only one used) on which the user operates. Here, a different layer is simulated at most through combinations with MOD + CTRL / SHIFT. The problem that arises here is that a third finger comes into play to operate the TilingWM. I personally find combinations with three fingers rather tiring and simply painful in the long run. The sheer number of possible key combinations in modal and default mode should be almost identical. What has changed, however, is the operation of the WindowManager with two-finger combos. On the one hand, the mode is activated with a two-finger combination, and in the selected mode another two-finger combination is used to trigger the respective function. At first glance, it is noticeable that four keys instead of the original three have to be pressed for each individual action that is to be carried out. The advantage here, however, is that instead of three keys with three fingers, you only play two keys twice with two fingers, and this is much smoother than a three-finger combo. It sounds incredibly theoretical at first, but you’ll notice it in no time.
Now, of course, the question arises as to which modes actually make sense in a TilingWM. In my initial considerations, I came to the conclusion that NORMAL, RESIZE, MOVE, LAYOUT, SESSION, and LAUNCH would make sense. Whether this will remain so in the long run remains to be seen, but these modes are quite useful for a start. There is one small “drawback.” I had configured my workflow to the point where I no longer needed a status bar like xmobar. However, in the beginning, it is quite helpful to see the current mode somewhere. So the xmobar is making a big comeback in my configuration. But more on that later. What is not included in modal control is switching between workspaces. Workspaces can be accessed across all modes with MOD + 1, MOD + 2, and so on.

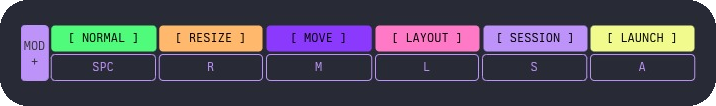

MODES

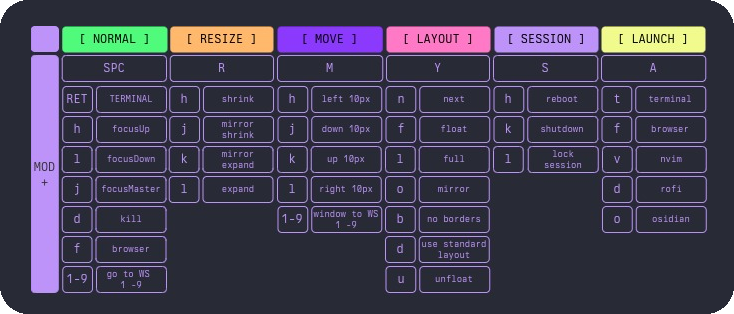

Of course, the individual modes are also assigned special tasks and house their own specific keybindings. I use NORMAL mode as the default mode (like Vim). [NORMAL]: Since NORMAL mode is the default, it serves as the basis for everything, i.e., if we are in another mode, we can always return to NORMAL mode with the combination MOD + SPACE. For the most part, NORMAL mode is similar to XMonad’s default mode. Here, you can spawn a terminal with MOD + ENTER, or kill the currently focused window with MOD + d. You can also open the standard browser with MOD + f.
[ RESIZE ]: RESIZE also does what you’d expect. It resizes the windows while retaining the tiling. MOD + h/j/k/l resizes them in the desired direction.
[ MOVE ]: MOVE does what it’s supposed to: it moves windows. MOD + h/j/k/l always moves windows 10px in the desired direction. Windows can also be moved to another workspace. This works with MOD + SHIFT + 1…9. This moves the window in focus to the selected workspace.
[ LAYOUT ]: The LAYOUT mode takes care of the arrangement of the windows. MOD + n jumps to the next available layout and cycles through the layouts until you end up back at the default layout. MOD + f changes the layout to a floating layout, i.e. with freely positionable windows. MOD + l switches to fullscreen mode and stretches the current window to the full screen size. MOD + o and MOD + b switch to a mirrored and a borderless layout. The two bindings MOD + d and MOD + u are currently used to switch to the default layout or to integrate floating windows back into the tiling concept.
[ SESSION ]: SESSION mode controls everything that is user- or session-related (as the name suggests). The keybindings MOD + h (restart XMonad), MOD + k (end XMonad), and MOD + l (lock session) are defined here. NOTE! If XMonad (as described in the last post) is configured via nixpkgs, the two keybindings restart XMonad and exit XMonad may not work. Separate parameters must be set in the nix configuration so that it can be restarted or ended from within nix-config.
[ LAUNCH ]: LAUNCH is primarily used to spawn frequently used tools directly without having to go through Rofi or the terminal. For example, MOD + t opens a terminal, MOD + f opens the browser, MOD + v opens an NVIM instance, MOD + d opens Rofi to launch other tools, and MOD + o opens Obsidian to organize all that stuff.
Now, the integration wasn’t entirely easy. I find Haskell incredibly exciting, but Haskell doesn’t really make things easy. Somehow, though, it worked.
INTEGRATION IN XMONAD
To get the modes working in XMonad, we start by defining the different modes:
1 data Mode = Normal | ResizeMode | MoveMode | LayoutMode | SessionMode | LaunchMode deriving (Eq, Show)
This tells XMonad that it can be in any of these modes and provides the appropriate keybindings for each mode. To ensure that XMonad remembers which mode is currently active, we use IORef Mode:
1 main = do
2 modeRef <- newIORef Normal
3 ...
Here, the mode is stored in IORef. IORef is a container in the IO monad that allows the current mode to be read and changed. The default is Normal.
Next, we need to ensure that XMonad recognizes and correctly processes mode changes via key combinations. Mode switching is done using myKeys:
1 switchMode :: IORef Mode -> Mode -> X ()
2 switchMode modeRef newMode = do
3 liftIO $ writeIORef modeRef newMode
4 refresh
With switchMode, we write the new mode in IORef. refresh causes XMonad to refresh the screen. To make the mode change work via keybinding, we define the mode keys as a comprehensive cluster of keybindings:
1 ((mod4Mask, xK_space), switchMode modeRef Normal)
2 ((mod4Mask, xK_r), switchMode modeRef ResizeMode)
3 ((mod4Mask, xK_m), switchMode modeRef MoveMode)
4 ((mod4Mask, xK_y), switchMode modeRef LayoutMode)
5 ((mod4Mask, xK_s), switchMode modeRef SessionMode)
6 ((mod4Mask, xK_a), switchMode modeRef LaunchMode)
This way, when we use the combination MOD + r, modeRef is set to ResizeMode. Then refresh is executed from the switchMode function so that XMonad applies the change directly. This allows for a direct mode change. Initially, I had the problem that the mode change was only recognized when the subsequent key combination was triggered. With the helper function, the change becomes active immediately after the change.
The next step is to map the keys, or rather their corresponding functions, to the available modes. The previous keybinding mapping looked like this (this remains the way to go for a non-modal operation):
1 normalKeys modeRef =
2 [ ((mod4Mask, xK_h), withMode Normal modeRef $ windows W.focusUp)
3 , ((mod4Mask, xK_l), withMode Normal modeRef $ windows W.focusDown)
4 ]
5
6 resizeKeys modeRef =
7 [ ((mod4Mask, xK_h), withMode ResizeMode modeRef $ sendMessage Shrink)
8 , ((mod4Mask, xK_l), withMode ResizeMode modeRef $ sendMessage Expand)
9 ]
Unfortunately, XMonad always caused problems here, overwriting the bindings with the last defined mode. Thus, mode-specific bindings weren’t possible. Fortunately, XMonad can be tweaked to the point where, instead of assigning modes to keybindings, we do the opposite: assigning keybindings to the modes. We make this possible by building a cluster of context-sensitive keybindings:
1 dynamicKeys :: IORef Mode -> [((KeyMask, KeySym), X ())]
2 dynamicKeys modeRef =
3 [ ((mod4Mask, xK_h), modeDispatch modeRef
4 [ (Normal, windows W.focusUp)
5 , (ResizeMode, sendMessage Shrink)
6 , (MoveMode, sendMessage (MoveLeft 10))
7 , (SessionMode, spawn "xmonad --restart")
8 ])
9 --- more keybindings
10 ]
The helper function modeDispatcher checks the current mode and then executes the corresponding action. In this case, we assign the keybinding MOD + h to check the current mode and then execute the corresponding action. This “overwrites” the keys and provides the functions for each mode. For example, MOD + h can move the window focus in NORMAL mode, narrow the current window in RESIZE mode, and move the window to the left in MOVE mode.
Of course, we also want to pass all this to xmobar. Passing the mode to the xmobar is done using modeLogger:
1 modeLogger :: IORef Mode -> X (Maybe String)
2 modeLogger modeRef = do
3 mode <- liftIO $ readIORef modeRef
4 let icon txt = "<fn=1>" ++ txt ++ "</fn>"
5 let formatMode bg fg name = wrapColor bg fg (icon " \xE61F " ++ name)
6 return $ Just $ case mode of
7 Normal -> formatMode "#50FA7B" "282A36" "NORMAL"
8 ResizeMode -> formatMode "#FFB86C" "282A36" "RESIZE"
9 MoveMode -> formatMode "#8B39FD" "282A36" "MOVE"
10 LayoutMode -> formatMode "#FF79C6" "282A36" "LAYOUT"
11 SessionMode -> formatMode "#BD93F9" "282A36" "SESSION"
12 LaunchMode -> formatMode "#F1FA8C" "282A36" "LAUNCH"
Here, the current mode is displayed in color and with an icon. NORMAL mode appears in green, RESIZE in orange, and everything looks just like the Dracula theme. We’ll also integrate modeLogger into myXmobarPP:
1 myXmobarPP xmproc modeRef = def {
2 ppExtras = [modeLogger moderef, windowCountLogger, timeAndKernelLogger]
3 )
This allows us to perfectly operate XMonad with modes.
This allows us to pass the strings to xmobar in addition to the workspaces, layout, and title and display them there. All that’s missing now is our .xmobarrc.
INTEGRATION IN XMOBAR
The integration in xmobar, however, is much simpler. We’ll integrate a function into xmobar that is usually used by default: StdinReader:
, Run StdinReader
StdinReader waits until any process sends a message to the default input stream (stdin). In the xmobarrc, StdinReader is responsible for receiving dynamic information from XMonad, specifically workspaces and window titles. Since we’ve already completely styled the mode display in the XMonad config, we don’t need any additional color definitions here in the xmobar; we can use StdinReader directly. The entire .xmobarrc is provided below.
COMPLETE CONFIG
This should make the modal configuration of XMonad and its integration into xmobar work perfectly. If you want to test it yourself, you can find the config files on GITHUB and, for the sake of completeness, here is the complete XMONAD.HS (integrated into NixOS):
1{ ... }:
2
3{
4 services.xserver = {
5 windowManager.xmonad = {
6 enable = true;
7 enableContribAndExtras = true;
8
9 config = ''
10 ------------------------------------------------------------------------
11 ---IMPORTS
12 ------------------------------------------------------------------------
13 -- Base
14 import XMonad
15 import XMonad.Config.Desktop (desktopConfig)
16 import Data.Monoid
17 import Data.Maybe (isJust)
18 import System.IO
19 import System.Exit (exitSuccess)
20 import System.Process (readProcess)
21 import qualified XMonad.StackSet as W
22
23 -- Utilities
24 import XMonad.Util.EZConfig (additionalKeysP, additionalMouseBindings)
25 import XMonad.Util.NamedScratchpad
26 import XMonad.Util.Run (safeSpawn, unsafeSpawn, runInTerm, spawnPipe, runProcessWithInput)
27 import XMonad.Util.SpawnOnce
28
29 -- Hooks
30 import XMonad.Hooks.DynamicLog (dynamicLogWithPP, ppCurrent, ppVisible, ppTitle, ppOrder, ppSep, ppLayout, ppExtras, ppOutput, wrap, pad, xmobarPP, xmobarColor, shorten, PP(..))
31 import XMonad.Hooks.ManageDocks
32 import XMonad.Hooks.ManageHelpers (isFullscreen, isDialog, doFullFloat, doCenterFloat)
33 import XMonad.Hooks.SetWMName
34 import XMonad.Hooks.EwmhDesktops
35
36 -- Actions
37 import XMonad.Actions.Minimize (minimizeWindow)
38 import XMonad.Actions.Promote
39 import XMonad.Actions.CopyWindow (kill1)
40 import XMonad.Actions.WindowGo (runOrRaise, raiseMaybe)
41 import XMonad.Actions.WithAll (sinkAll, killAll)
42 import XMonad.Actions.CycleWS (moveTo, shiftTo, WSType(..), nextScreen, prevScreen, shiftNextScreen, shiftPrevScreen)
43 import XMonad.Actions.GridSelect
44 import XMonad.Actions.DynamicWorkspaces (addWorkspacePrompt, removeEmptyWorkspace)
45 import XMonad.Actions.MouseResize
46
47 -- Layouts modifiers
48 import XMonad.Layout.PerWorkspace (onWorkspace)
49 import XMonad.Layout.Renamed (renamed, Rename(CutWordsLeft, Replace))
50 import XMonad.Layout.Spacing (spacing)
51 import XMonad.Layout.NoBorders
52 import XMonad.Layout.LimitWindows (limitWindows, increaseLimit, decreaseLimit)
53 import XMonad.Layout.WindowArranger
54 import XMonad.Layout.Reflect (reflectVert, reflectHoriz, REFLECTX(..), REFLECTY(..))
55 import XMonad.Layout.MultiToggle (mkToggle, single, EOT(EOT), Toggle(..), (??))
56 import XMonad.Layout.MultiToggle.Instances (StdTransformers(NBFULL, MIRROR, NOBORDERS))
57 import qualified XMonad.Layout.ToggleLayouts as T (toggleLayouts, ToggleLayout(Toggle))
58
59 -- Layouts
60 import XMonad.Layout.NoFrillsDecoration
61 import XMonad.Layout.SimplestFloat
62 import XMonad.Layout.OneBig
63 import XMonad.Layout.ThreeColumns
64 import XMonad.Layout.ResizableTile
65 import XMonad.Layout.ZoomRow (zoomRow, zoomIn, zoomOut, zoomReset, ZoomMessage(ZoomFullToggle))
66
67 -- Prompts
68 import XMonad.Prompt
69
70 -- Modal imports
71 import qualified Data.Map as M
72 import qualified DBus as D
73 import qualified DBus.Client as D
74 import Data.IORef (IORef, newIORef, readIORef, writeIORef)
75 import XMonad.Actions.MessageFeedback
76 import Control.Monad (when)
77 import XMonad (liftIO)
78 import Data.Time (getZonedTime, formatTime, defaultTimeLocale)
79 import Data.Time.Clock (getCurrentTime)
80 import XMonad.StackSet as W
81
82------------------------------------------------------------------------
83 ---CONFIG
84 ------------------------------------------------------------------------
85 data Mode = Normal | ResizeMode | MoveMode | LayoutMode | SessionMode | LaunchMode deriving (Eq, Show)
86
87 myFont = "xft:Berkeley Mono Nerd Font:style=Regular:pixelsize=11"
88 myModMask = mod4Mask
89 myTerminal = "alacritty"
90 myTextEditor = "nvim"
91 myBorderWidth = 2
92
93 initialClient :: Mode
94 initialClient = Normal
95
96 main :: IO ()
97 main = do
98 modeRef <- newIORef Normal
99 dbus <- D.connectSession
100 xmproc <- spawnPipe "xmobar"
101 dbusRef <- newIORef dbus
102 xmonad $ docks def
103 { terminal = myTerminal
104 , modMask = myModMask
105 , startupHook = myStartupHook
106 , XMonad.workspaces = myWorkspaces
107 , borderWidth = myBorderWidth
108 , normalBorderColor = "#44475A"
109 , focusedBorderColor = "#50FA7b"
110 , keys = \c -> myKeys modeRef c
111 , layoutHook = myLayoutHook
112 , manageHook = manageDocks <+> manageHook def
113 , logHook = dynamicLogWithPP (myXmobarPP xmproc modeRef)
114 { ppOutput = hPutStrLn xmproc
115 , ppTitle = xmobarColor "#BD93F9" "" . shorten 50
116 , ppExtras = [modeLogger modeRef]
117 }
118 >> updateModeLog modeRef dbusRef
119 }
120
121 ------------------------------------------------------------------------
122 ---AUTOSTART
123 ------------------------------------------------------------------------
124 myStartupHook = do
125 spawnOnce "nitrogen --restore &"
126
127 ------------------------------------------------------------------------
128 --- SET KEYS
129 --- TO FIND KEY IDENTIFIERS: XEV
130 ------------------------------------------------------------------------
131 myKeys :: IORef Mode -> XConfig l -> M.Map (KeyMask, KeySym) (X ())
132 myKeys modeRef conf = M.fromList $
133 [ ((mod4Mask, xK_space), switchMode modeRef Normal)
134 , ((mod4Mask, xK_r), switchMode modeRef ResizeMode)
135 , ((mod4Mask, xK_m), switchMode modeRef MoveMode)
136 , ((mod4Mask, xK_y), switchMode modeRef LayoutMode)
137 , ((mod4Mask, xK_s), switchMode modeRef SessionMode)
138 , ((mod4Mask, xK_a), switchMode modeRef LaunchMode)
139
140 , ((mod4Mask, xK_1), windows $ W.view "0")
141 , ((mod4Mask, xK_2), windows $ W.view "1")
142 , ((mod4Mask, xK_3), windows $ W.view "2")
143 , ((mod4Mask, xK_4), windows $ W.view "3")
144 , ((mod4Mask, xK_5), windows $ W.view "4")
145 , ((mod4Mask, xK_6), windows $ W.view "5")
146 , ((mod4Mask, xK_7), windows $ W.view "6")
147 , ((mod4Mask, xK_8), windows $ W.view "7")
148 , ((mod4Mask, xK_9), windows $ W.view "8")
149 ]
150 ++ dynamicKeys modeRef
151
152 switchMode :: IORef Mode -> Mode -> X ()
153 switchMode modeRef newMode = do
154 liftIO $ writeIORef modeRef newMode
155 refresh
156
157 modeDispatch :: IORef Mode -> [(Mode, X ())] -> X ()
158 modeDispatch modeRef actions = do
159 current <- liftIO $ readIORef modeRef
160 case lookup current actions of
161 Just action -> action
162 Nothing -> return ()
163
164 ------------------------------------------------------------------------
165 --- DEFINE MODE KEY MAPS
166 ------------------------------------------------------------------------
167 dynamicKeys :: IORef Mode -> [((KeyMask, KeySym), X ())]
168 dynamicKeys modeRef =
169 [ ((mod4Mask, xK_h), modeDispatch modeRef
170 [ (Normal, windows W.focusUp)
171 , (ResizeMode, sendMessage Shrink)
172 , (MoveMode, sendMessage (MoveLeft 10))
173 -- , (LayoutMode, COMMAND)
174 , (SessionMode, spawn "xmonad --restart")
175 -- , (LaunchMode, COMMAND)
176 ])
177
178 , ((mod4Mask, xK_j), modeDispatch modeRef
179 [ (Normal, windows W.focusMaster)
180 , (ResizeMode, sendMessage MirrorShrink)
181 , (MoveMode, sendMessage (MoveDown 10))
182 -- , (LayoutMode, COMMAND)
183 -- , (SessionMode, COMMAND)
184 -- , (LaunchMode, COMMAND)
185 ])
186
187 , ((mod4Mask, xK_k), modeDispatch modeRef
188 [ -- (Normal, COMMAND)
189 (ResizeMode, sendMessage MirrorExpand)
190 , (MoveMode, sendMessage (MoveUp 10))
191 -- , (LayoutMode, COMMAND)
192 , (SessionMode, io exitSuccess)
193 -- , (LaunchMode, COMMAND)
194 ])
195
196 , ((mod4Mask, xK_l), modeDispatch modeRef
197 [ (Normal, windows W.focusDown)
198 , (ResizeMode, sendMessage Expand)
199 , (MoveMode, sendMessage (MoveRight 10))
200 , (LayoutMode, sendMessage ZoomFullToggle)
201 , (SessionMode, spawn "loginctl lock-session")
202 -- , (LaunchMode, COMMAND)
203 ])
204
205 , ((mod4Mask, xK_Return), modeDispatch modeRef
206 [ (Normal, spawn myTerminal)
207 -- , (ResizeMode, COMMAND)
208 -- , (MoveMode, COMMAND)
209 -- , (LayoutMode, COMMAND)
210 -- , (SessionMode, COMMAND)
211 -- , (LaunchMode, COMMAND)
212 ])
213
214 , ((mod4Mask, xK_d), modeDispatch modeRef
215 [ (Normal, kill1)
216 -- , (ResizeMode, COMMAND)
217 -- , (MoveMode, COMMAND)
218 , (LayoutMode, setLayout (Layout (Tall 1 (3/100) (1/2))))
219 -- , (SessionMode, COMMAND)
220 , (LaunchMode, spawn "rofi -show run")
221 ])
222
223 , ((mod4Mask, xK_f), modeDispatch modeRef
224 [ (Normal, spawn "librewolf")
225 -- , (ResizeMode, COMMAND)
226 -- , (MoveMode, COMMAND)
227 , (LayoutMode, sendMessage (T.Toggle "float"))
228 -- , (SessionMode, COMMAND)
229 , (LaunchMode, spawn "librewolf")
230 ])
231
232 , ((mod4Mask, xK_n), modeDispatch modeRef
233 [-- (Normal, COMMAND)
234 --, (ResizeMode, COMMAND)
235 --, (MoveMode, COMMAND)
236 (LayoutMode, sendMessage (MoveRight 10))
237 -- , (SessionMode, COMMAND)
238 -- , (LaunchMode, COMMAND)
239 ])
240
241 , ((mod4Mask, xK_o), modeDispatch modeRef
242 [ -- (Normal, COMMAND)
243 -- , (ResizeMode, COMMAND)
244 -- , (MoveMode, COMMAND)
245 (LayoutMode, sendMessage $ Toggle MIRROR)
246 -- , (SessionMode, COMMAND)
247 , (LaunchMode, spawn "obsidian")
248 ])
249
250 , ((mod4Mask, xK_b), modeDispatch modeRef
251 [ -- (Normal, COMMAND)
252 -- , (ResizeMode, COMMAND)
253 -- , (MoveMode, COMMAND)
254 (LayoutMode, sendMessage $ Toggle NOBORDERS)
255 -- , (SessionMode, COMMAND)
256 -- , (LaunchMode, COMMAND)
257 ])
258
259 , ((mod4Mask, xK_u), modeDispatch modeRef
260 [ -- (Normal, COMMAND)
261 -- , (ResizeMode, COMMAND)
262 -- , (MoveMode, COMMAND)
263 -- , (LayoutMode, COMMAND)
264 -- , (SessionMode, COMMAND)
265 -- , (LaunchMode, COMMAND)
266 ])
267
268 , ((mod4Mask, xK_t), modeDispatch modeRef
269 [ -- (Normal, COMMAND)
270 -- , (ResizeMode, COMMAND)
271 -- , (MoveMode, COMMAND)
272 -- , (LayoutMode, COMMAND)
273 -- , (SessionMode, COMMAND)
274 (LaunchMode, spawn myTerminal)
275 ])
276
277 , ((mod4Mask, xK_v), modeDispatch modeRef
278 [ -- (Normal, COMMAND)
279 -- , (ResizeMode, COMMAND)
280 -- , (MoveMode, COMMAND)
281 -- , (LayoutMode, COMMAND)
282 -- , (SessionMode, COMMAND)
283 (LaunchMode, spawn "nvim")
284 ])
285 ]
286
287 withMode :: Mode -> IORef Mode -> X () -> X ()
288 withMode expected modeRef action = do
289 mode <- liftIO $ readIORef modeRef
290 when (mode == expected) $ do
291 liftIO $ writeIORef modeRef expected
292 action
293
294 ------------------------------------------------------------------------
295 ---WORKSPACES
296 ------------------------------------------------------------------------
297 xmobarEscape :: String -> String
298 xmobarEscape = concatMap doubleLts
299 where
300 doubleLts '<' = "<<"
301 doubleLts x = [x]
302
303 myWorkspaces :: [String]
304 myWorkspaces = ["0", "1", "2", "3", "4", "5", "6", "7", "8"]
305
306 myManageHook :: Query (Data.Monoid.Endo WindowSet)
307 myManageHook = composeAll
308 [
309 className =? "Firefox" --> doShift "<action=xdotool key super+1>www</action>"
310 , title =? "Vivaldi" --> doShift "<action=xdotool key super+1>www</action>"
311 , title =? "irssi" --> doShift "<action=xdotool key super+9>irc</action>"
312 , (className =? "Firefox" <&&> resource =? "Dialog") --> doFloat -- Float Firefox Dialog
313 ]
314
315 ------------------------------------------------------------------------
316 --- XMOBAR
317 ------------------------------------------------------------------------
318 myXmobarPP :: Handle -> IORef Mode -> PP
319 myXmobarPP xmproc modeRef = def {
320 ppCurrent = xmobarColor "#50FA7b" "" . wrap " [" "] ",
321 ppVisible = const "",
322 ppHidden = const "",
323 ppHiddenNoWindows = const "",
324 ppTitle = xmobarColor "#f8f8f2" "" . shorten 60,
325 ppSep = " ",
326 ppLayout = xmobarColor "#ff79c6" "",
327 ppOrder = \(ws:l:t:extras) -> extras ++ [ws, t],
328 ppExtras = [modeLogger modeRef, windowCountLogger, timeAndKernelLogger]
329
330 }
331
332 timeAndKernelLogger :: X (Maybe String)
333 timeAndKernelLogger = liftIO $ do
334 time <- getCurrentTime
335 let timeString = formatTime defaultTimeLocale "%Y-%m-%d %H:%M:%S" time
336 kernel <- readProcess "uname" ["-r"] ""
337 return $ Just $ xmobarColor "#6272A4" "" (kernel ++ " | " ++ timeString)
338
339 dynamicLogTimeAndKernel :: IO String
340 dynamicLogTimeAndKernel = do
341 time <- dynamicLogTime
342 kernel <- kernelInfo
343 return (kernel ++ " | " ++ time)
344
345 dynamicLogTime :: IO String
346 dynamicLogTime = do
347 time <- getCurrentTime
348 let timeString = formatTime defaultTimeLocale "%Y-%m-%d %H:%M:%S" time
349 return timeString
350
351 kernelInfo :: IO String
352 kernelInfo = do
353 kernel <- readProcess "uname" ["-r"] ""
354 return kernel
355
356 modeLogger :: IORef Mode -> X (Maybe String)
357 modeLogger modeRef = do
358 mode <- liftIO $ readIORef modeRef
359 let icon txt = "<fn=1>" ++ txt ++ "</fn>"
360 let formatMode bg fg name = wrapColor bg fg (icon " \xE61F " ++ name)
361 let fmt bg fg txt = "<fc=" ++ fg ++ "," ++ bg ++ "> " ++ txt ++ " </fc>"
362 return $ Just $ case mode of
363 Normal -> formatMode "#50FA7B" "#282A36" ( "NORMAL " )
364 ResizeMode -> formatMode "#FFB86C" "#282A36" ( "RESIZE " )
365 MoveMode -> formatMode "#8B39FD" "#282A36" ( "MOVE " )
366 LayoutMode -> formatMode "#FF79C6" "#282A36" ( "LAYOUT " )
367 SessionMode -> formatMode "#BD93F9" "#282A36" ( "SESSION " )
368 LaunchMode -> formatMode "#F1FA8C" "#282A36" ( "LAUNCH " )
369
370 windowCountLogger :: X (Maybe String)
371 windowCountLogger = withWindowSet $ \ws -> do
372 let count = length (W.index ws)
373 return $ Just $ xmobarColor "#ff79c6" "" (show count)
374
375 updateModeLog :: IORef Mode -> IORef D.Client -> X ()
376 updateModeLog modeRef dbusRef = do
377 mode <- liftIO $ readIORef modeRef
378 dbus <- liftIO $ readIORef dbusRef
379 let modeText = case mode of
380 Normal -> " NORMAL "
381 ResizeMode -> " RESIZE "
382 MoveMode -> " MOVE "
383 LayoutMode -> " LAYOUT "
384 SessionMode -> " SESSION "
385 LaunchMode -> " LAUNCH "
386
387 let modeFile = "/tmp/xmonad_mode.txt"
388 liftIO $ do
389 handle <- openFile modeFile WriteMode
390 hPutStrLn handle modeText
391 hClose handle
392
393 io $ D.emit dbus (D.signal objectPath interfaceName memberName)
394 { D.signalBody = [D.toVariant (modeText)] }
395 where
396 objectPath = D.objectPath_ "/org/xmonad/Log"
397 interfaceName = D.interfaceName_ "org.xmonad.Log"
398 memberName = D.memberName_ "Update"
399
400 wrapColor :: String -> String -> String -> String
401 wrapColor bg fg txt = "<box type=Full width=2 mb=0 color=" ++ bg ++ "><fc=" ++ fg ++ "," ++ bg ++ ">" ++ txt ++ "</fc></box>"
402
403 ------------------------------------------------------------------------
404 --- LAYOUTS
405 ------------------------------------------------------------------------
406
407 myLayoutHook = avoidStruts $ mouseResize $ windowArrange $ T.toggleLayouts floats $
408 mkToggle (NBFULL ?? NOBORDERS ?? EOT) $ myDefaultLayout
409 myDefaultLayout =
410 tall
411 ||| threeCol
412 ||| threeRow
413 ||| oneBig
414 ||| noBorders monocle
415 ||| space
416 ||| floats
417
418
419 tall = renamed [Replace "T"] $ limitWindows 12 $ spacing 6 $ ResizableTall 1 (3/100) (1/2) []
420 threeCol = renamed [Replace "3C"] $ limitWindows 3 $ ThreeCol 1 (3/100) (1/2)
421 threeRow = renamed [Replace "3R"] $ limitWindows 3 $ Mirror $ mkToggle (single MIRROR) zoomRow
422 oneBig = renamed [Replace "1B"] $ limitWindows 6 $ Mirror $ mkToggle (single MIRROR) $ mkToggle (single REFLECTX) $ mkToggle (single REFLECTY) $ OneBig (5/9) (8/12)
423 monocle = renamed [Replace "M"] $ limitWindows 20 $ Full
424 space = renamed [Replace "S"] $ limitWindows 4 $ spacing 12 $ Mirror $ mkToggle (single MIRROR) $ mkToggle (single REFLECTX) $ mkToggle (single REFLECTY) $ OneBig (2/3) (2/3)
425 floats = renamed [Replace "F"] $ limitWindows 20 $ simplestFloat
426
427 myTitleTheme :: Theme
428 myTitleTheme = def {
429 fontName = "xft:Berkeley Mono Nerd Font:style=Regular:pixelsize=11"
430 , inactiveBorderColor = "#44475A"
431 , inactiveColor = "#44475A"
432 , inactiveTextColor = "#BD93F9"
433 , activeBorderColor = "#44475A"
434 , activeColor = "#44475A"
435 , activeTextColor = "#50FA7B"
436 , urgentBorderColor = "#FF4242"
437 , urgentTextColor = "#262626"
438 , urgentColor = "#FF4242"
439 , decoHeight = 12
440 }
441 '';
442 enableConfiguredRecompile = true;
443 };
444 };
445
446
447}
and of course the corresponding .XMOBARRC:
1Config { font = "Berkeley Mono Nerd Font 9"
2 , additionalFonts = [ "xft:BerkeleyMono Nerd Font:pixelsize=9" ]
3 , textOffset = 0
4 , bgColor = "#44475A"
5 , fgColor = "#F8F8F2"
6 , position = Top
7 , lowerOnStart = True
8 , hideOnStart = False
9 , allDesktops = True
10 , persistent = True
11 , iconRoot = "/home/pho/.xmonad/xpm/"
12 , commands = [ Run Date "%H:%M:%S" "date" 10
13 , Run Com "uname" ["-r"] "kernel" 36000
14 , Run StdinReader
15 ]
16 , sepChar = "%"
17 , alignSep = "}{"
18 , template = "%StdinReader% }{ <fc=#FF79C6>%kernel%</fc> <fc=#50FA7B>::</fc> <fc=#F1FA8C>%date%</fc>"
19 }
CONCLUSION
At first, XMonad’s modal controls feel like extra effort. The significant change that results from modal controls is the elimination of three-finger combinations. Additionally, there are more combinations that can be used with two fingers. This means you have to use two fingers each time you change modes, and two-finger combinations again for other functions. However, you can optimize your workflow by adapting your actions to the mode. For example, spawning as many terminals as you need in normal mode and resizing them to the size you need in resize mode so you can then work with them. My workflow has been quite the opposite so far. Windows are spawned, used, closed, opened, resized, used, and closed. Many of these actions are three-finger combinations and, over time, take their toll on your hands and fingers. The keybindings I’m currently using certainly still need to be optimized, but for now, they work, and XMonad behaves like Vim. I created most of the modal configuration for XMonad on my ThinkPad with the default QWERTY keyboard, so a configuration for something like KYB3RKEYS would look completely different. Anyone using other layouts and wanting to provide the appropriate XMonad config for them is welcome to do so; I’ll include it in the repo. All in all, this is a solid foundation from which you can continue to tweak the settings to further refine and improve the user experience.
Happy Hacking!
[~] BACK
